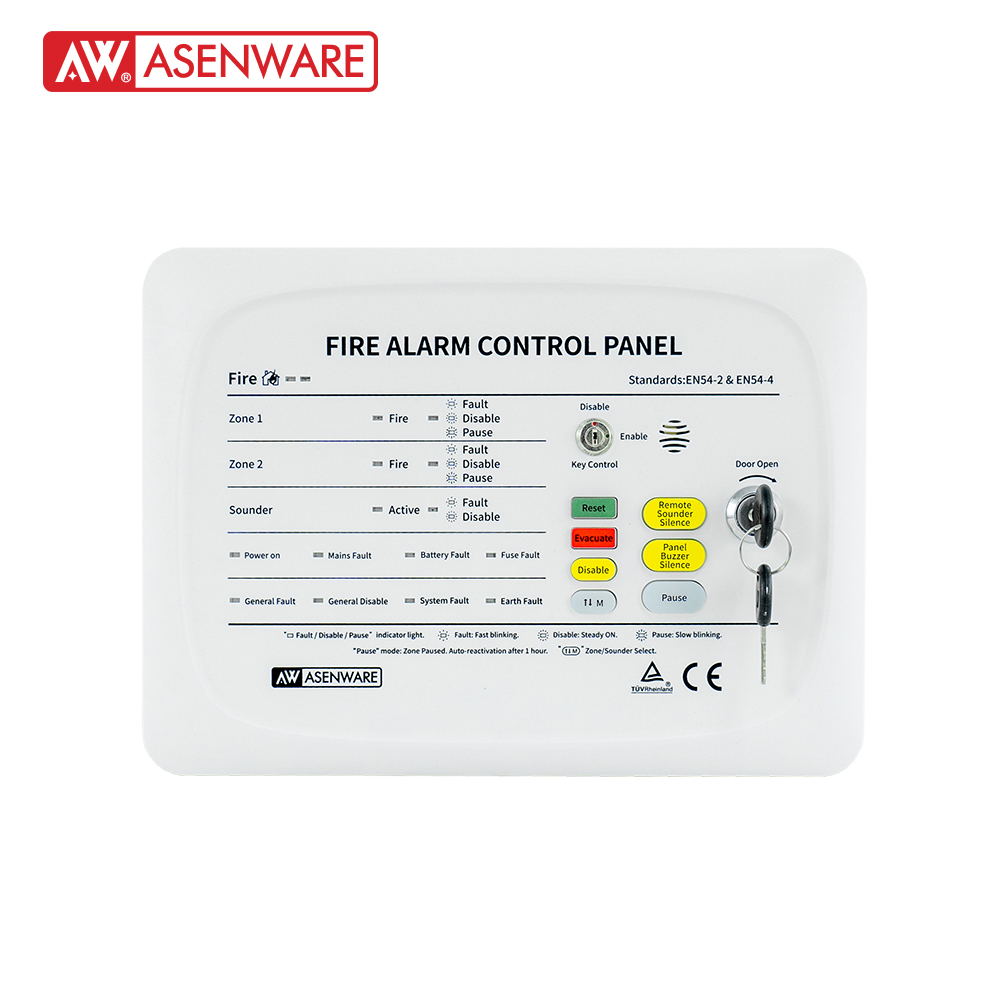

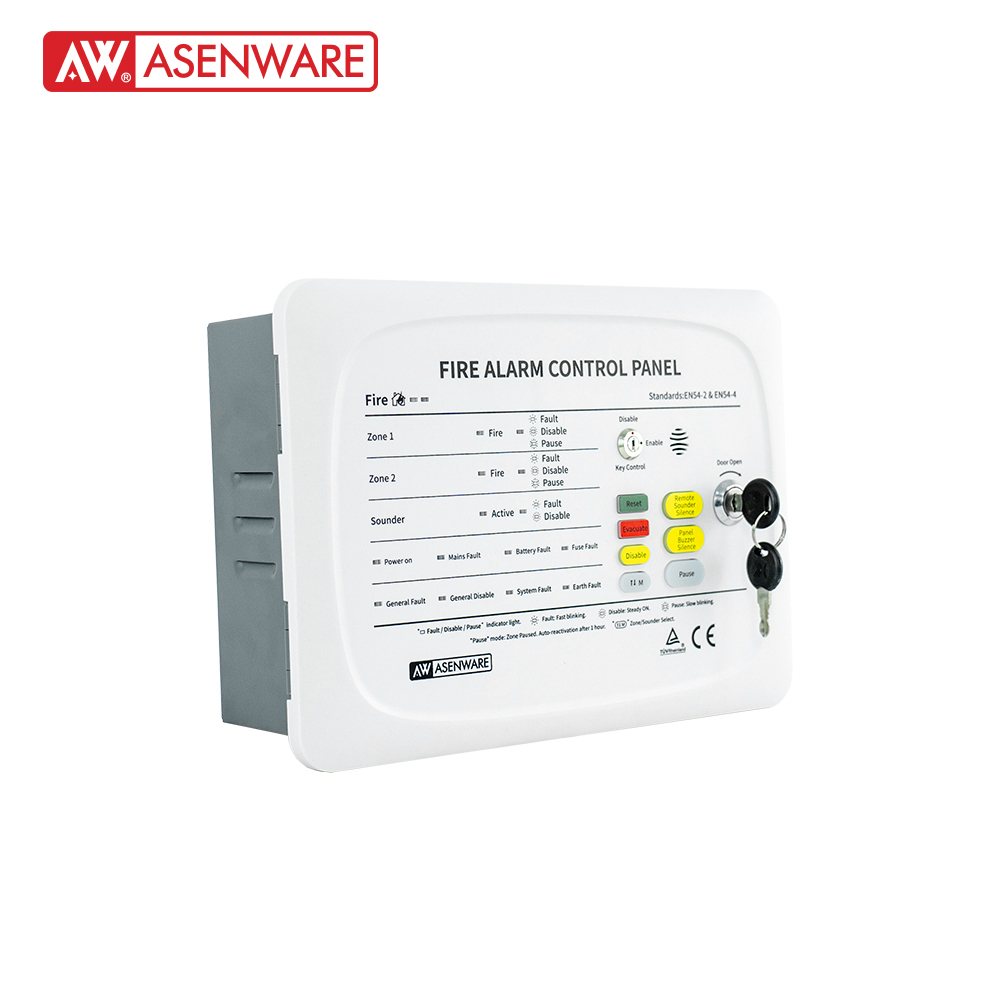

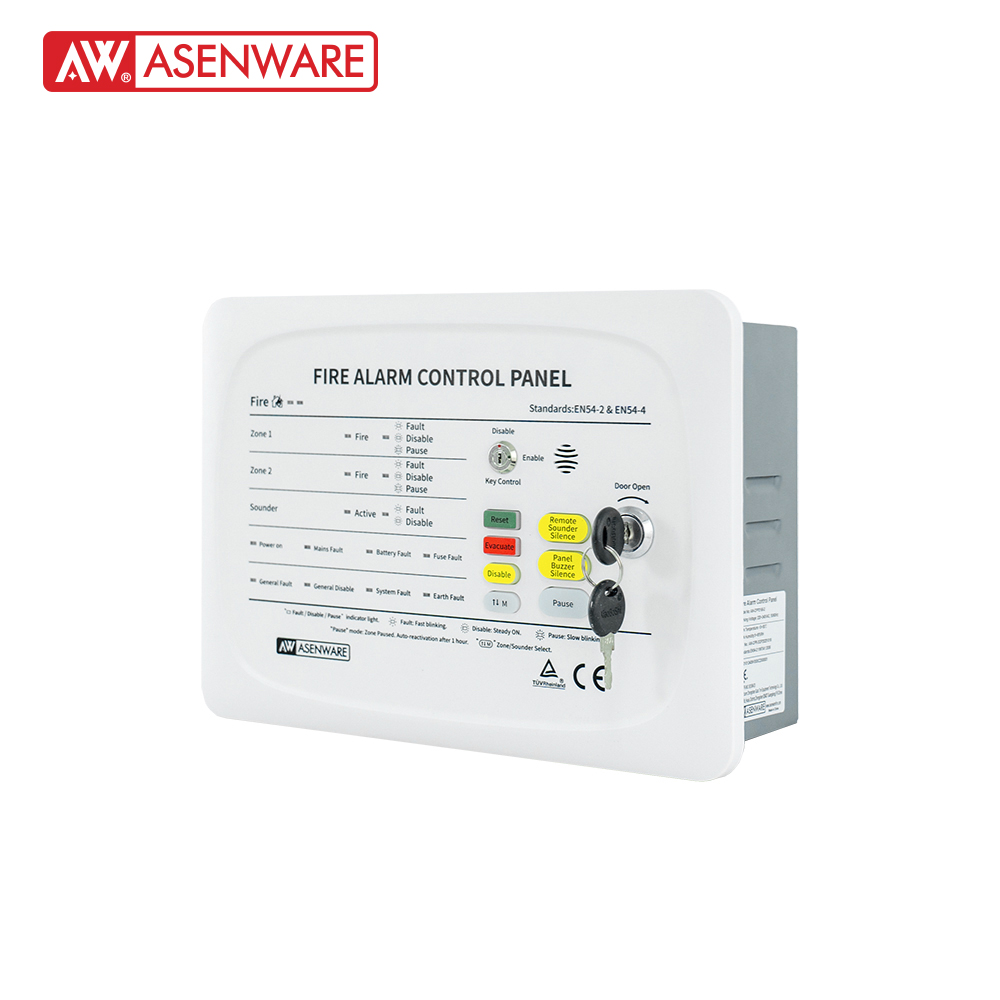

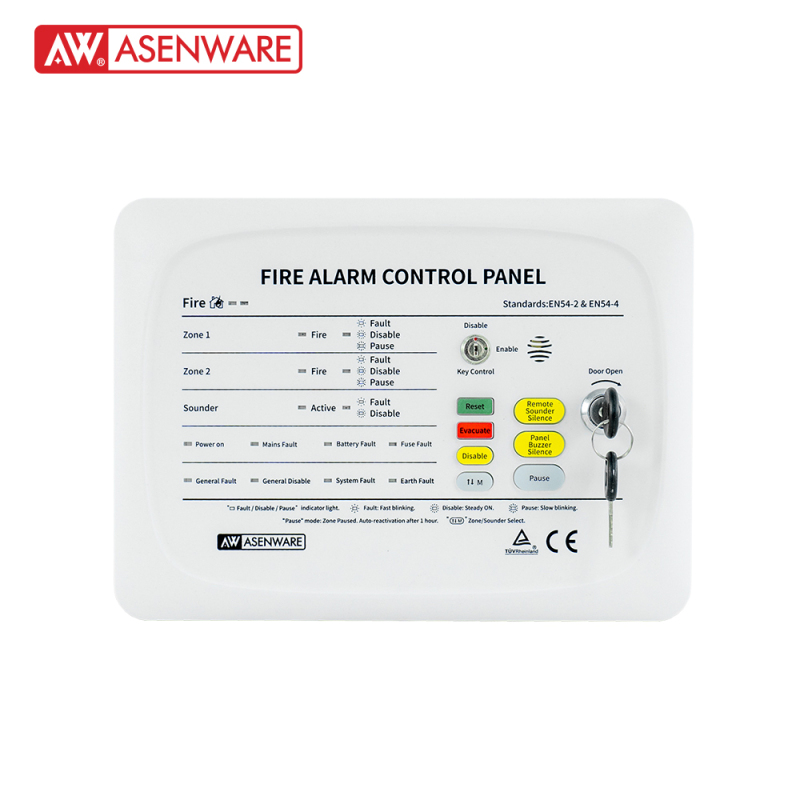

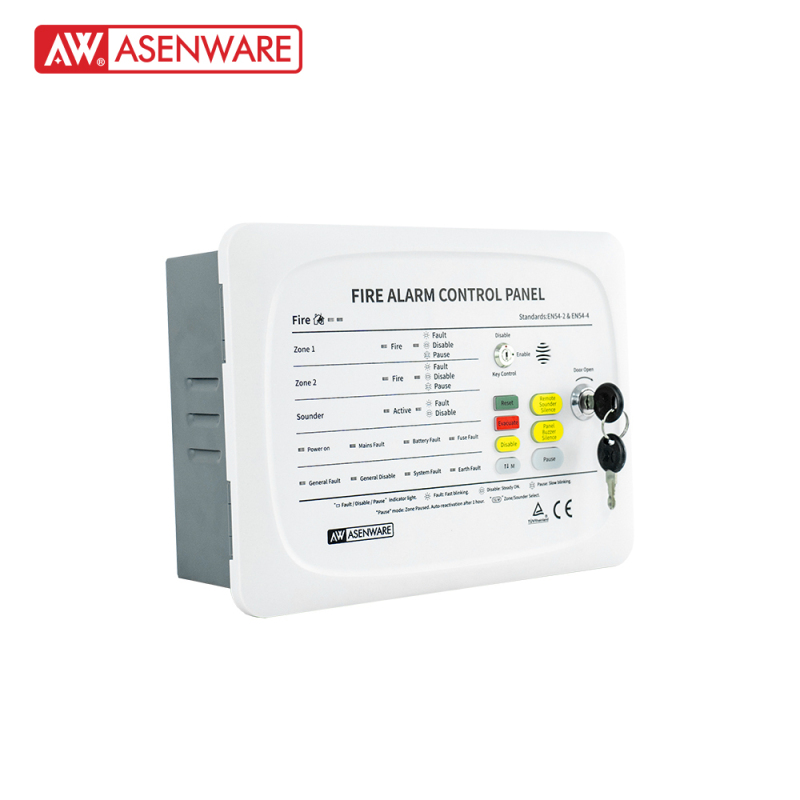

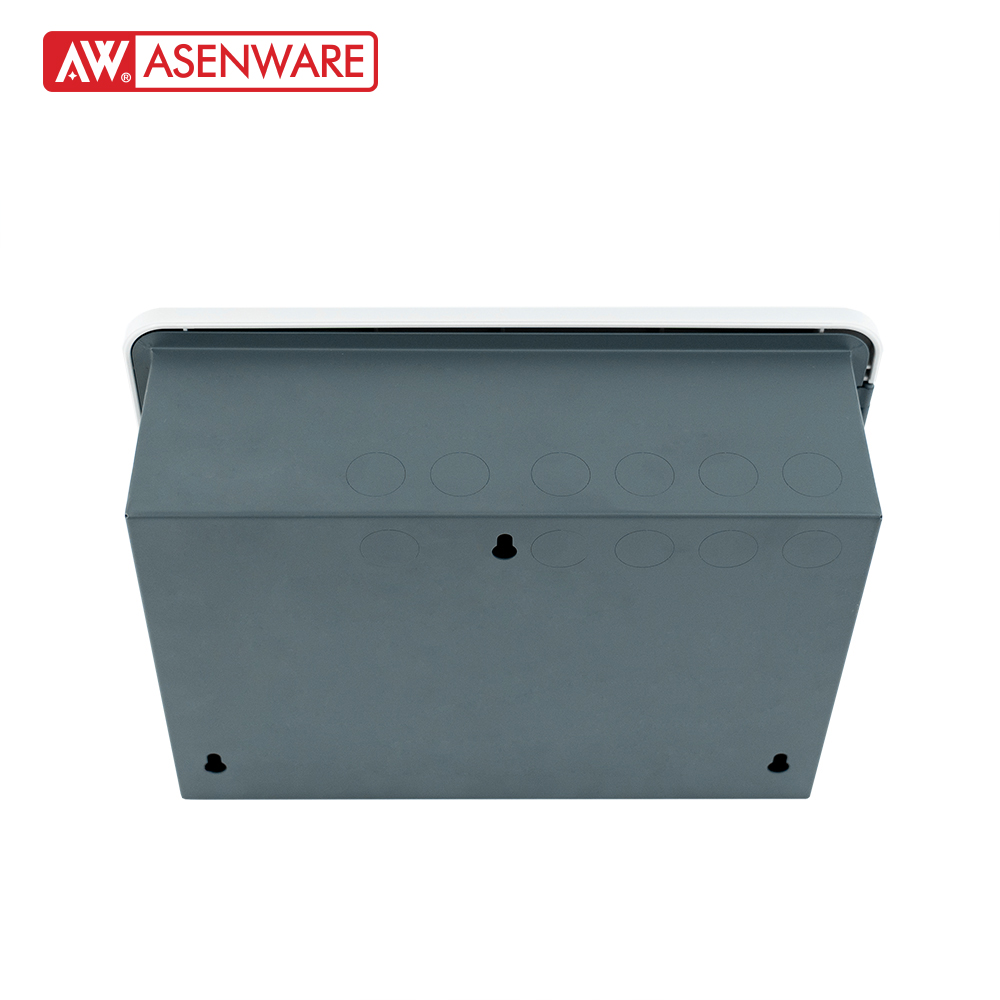

Name: AW-CFP2166-2 TUV Fire Alarm Control Panel
Brand: ASENWARE
SKU: AW-CFP2166-2
Availability: InStock
Rating: 5 (1 reviews)

Home > Fire Alarm System > Conventional Fire Alarm S...

AW-CFP2166-2 TUV Fire Alarm Control Panel

Description

The AW-CFP2166 fire alarm panel has the following characteristics:

Maximum number of Analogue Conventional Detector Inputs: 20 detectors each zone

Input: 2 Zones

2 outputs for Alarm devices: 2 bells

Relays: fault relay and fire relay

Auxiliary power output: 24VDC/ 100mA limiting protection

Automatic power switchover: mains power and secondary power (from batteries) Independent functional buttons with indication: User friendly interface for easy operation and recognition

Access levels to enter the panel

Product Features

1.Surface mounting

2.220VAC and battery for power supply

3.2 wire communication for Zones

4.LED indication and buzzer

5.Access levels to enter the panel

6.Sounder output for fire alarm

7.Relay outputs for fire alarm and fault warning

Technical Specification

Model	AW-CFP2166-2
Mains supply	220V-240VAC,50/60 Hz
Resettable 24V output	18～28VDC(24VDC typical). 200mAmax, current limited
Detectors connection allowed each Zone	20 (including MCPs)
Sounder output	Max 200mA@24VDC
Battery low-voltage protection	21V
Zone alarm current	8～20mA
